BROAD LEYS

 Ghyll Head, near Cartmel Fell,
 Lake Windermere, Cumbria.

1898-1900

 For Arthur Currer Briggs.

1899 design for a free-standing lodge. 1900 design for a gate lodge.

Broad Leys is now the Windermere Motor Boat Club.





Contemporary photo with the veranda on the left,
photo RIBA





Image on architectdesign.blogspot.de





Photo with the original veranda
Link > RIBA Collections





Sketch on the right with the original veranda by John Higgins



Link > Image on Victoria and Albert Museum, London





Link > RIBA Drawings Collection






Text published in The British Architect, 13th October 1899, p.254.





 View from the south, photo courtesy of John Trotter





 Entrance, view from the east, photo courtesy of John Trotter





Entrance, view from the south-east, photo by Charles Holland on fantasticjournal.blogspot.com

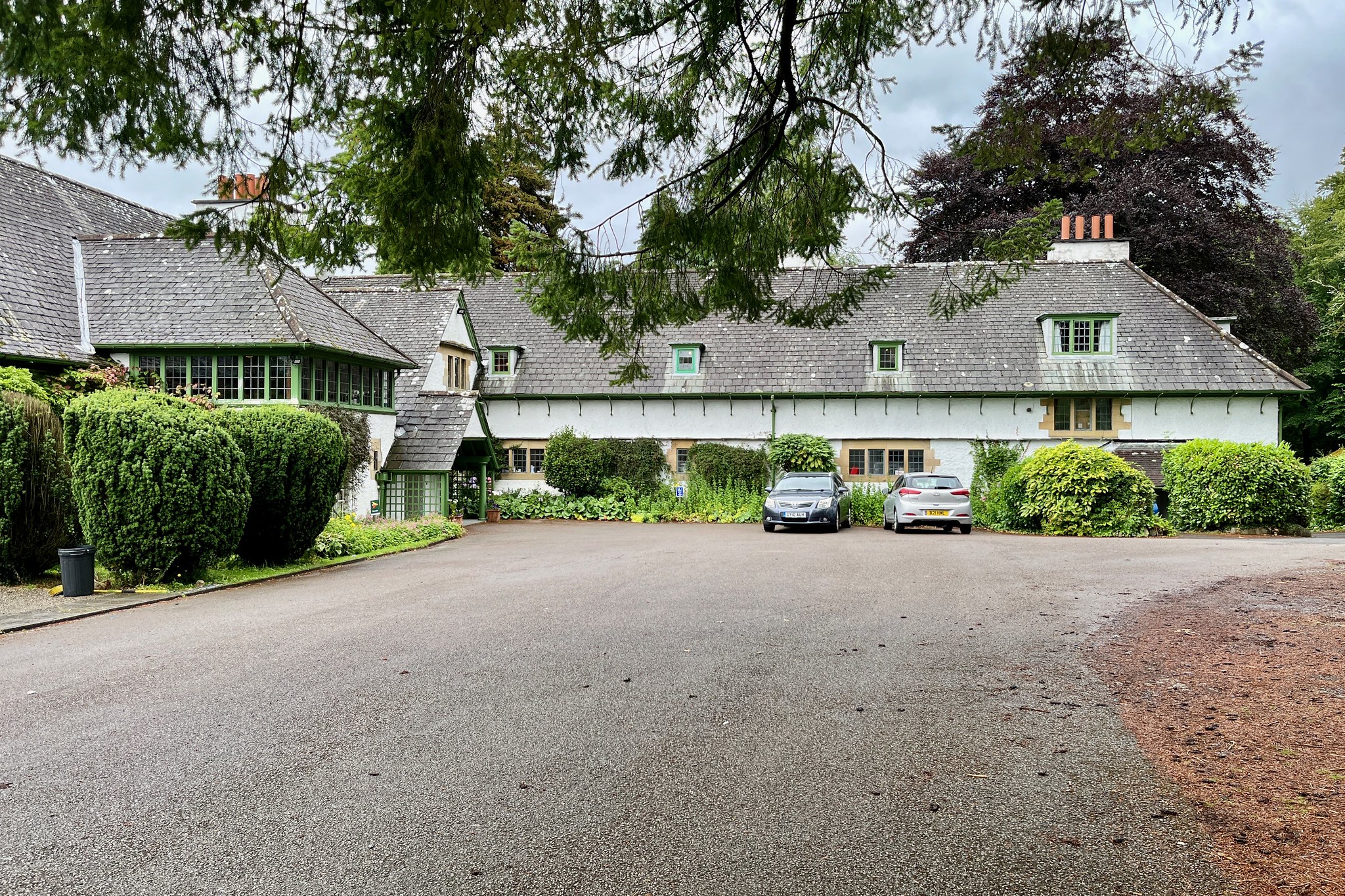

Service wing, view from the south,
photo by Charles Holland on fantasticjournal.blogspot.com

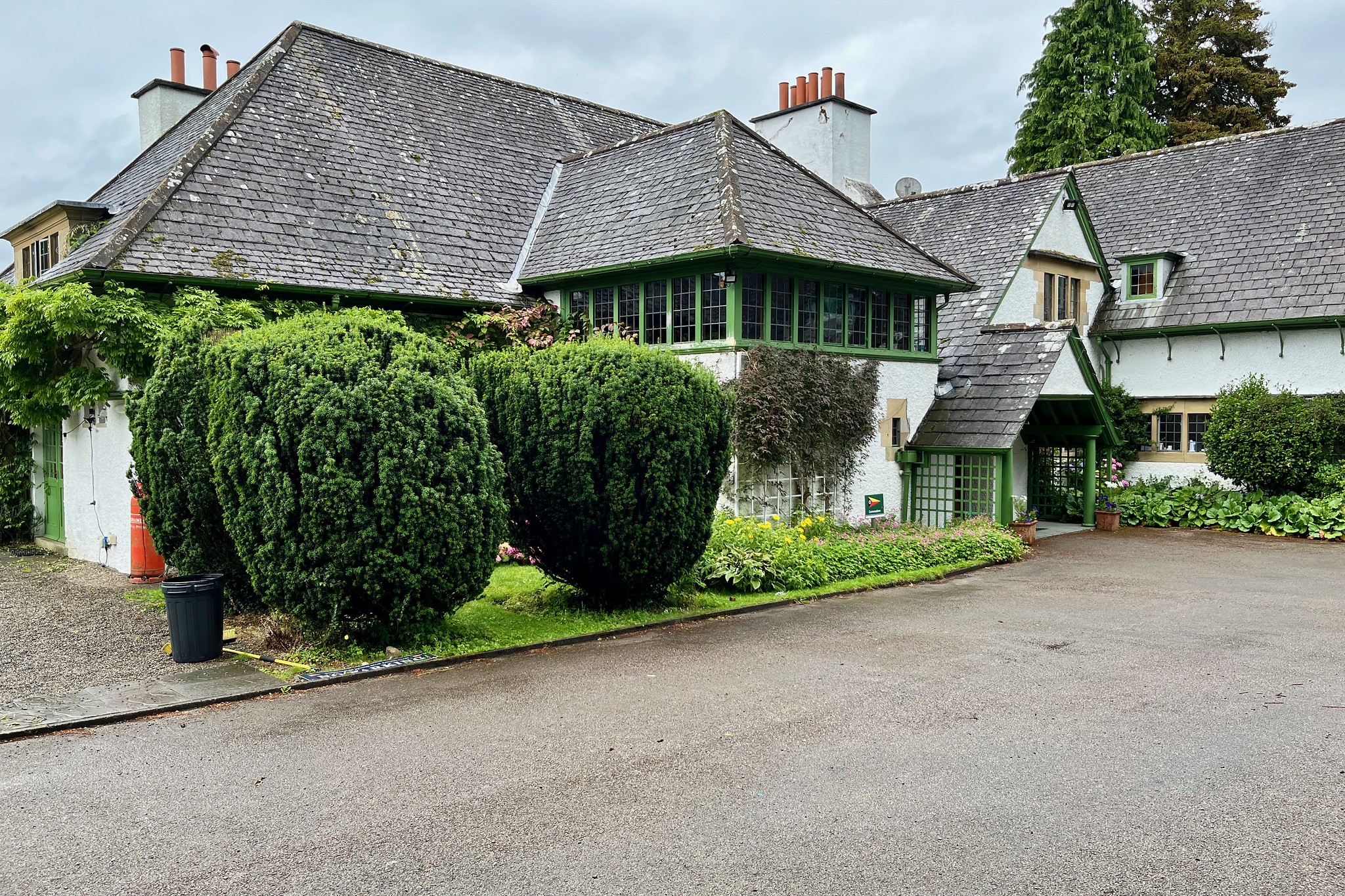

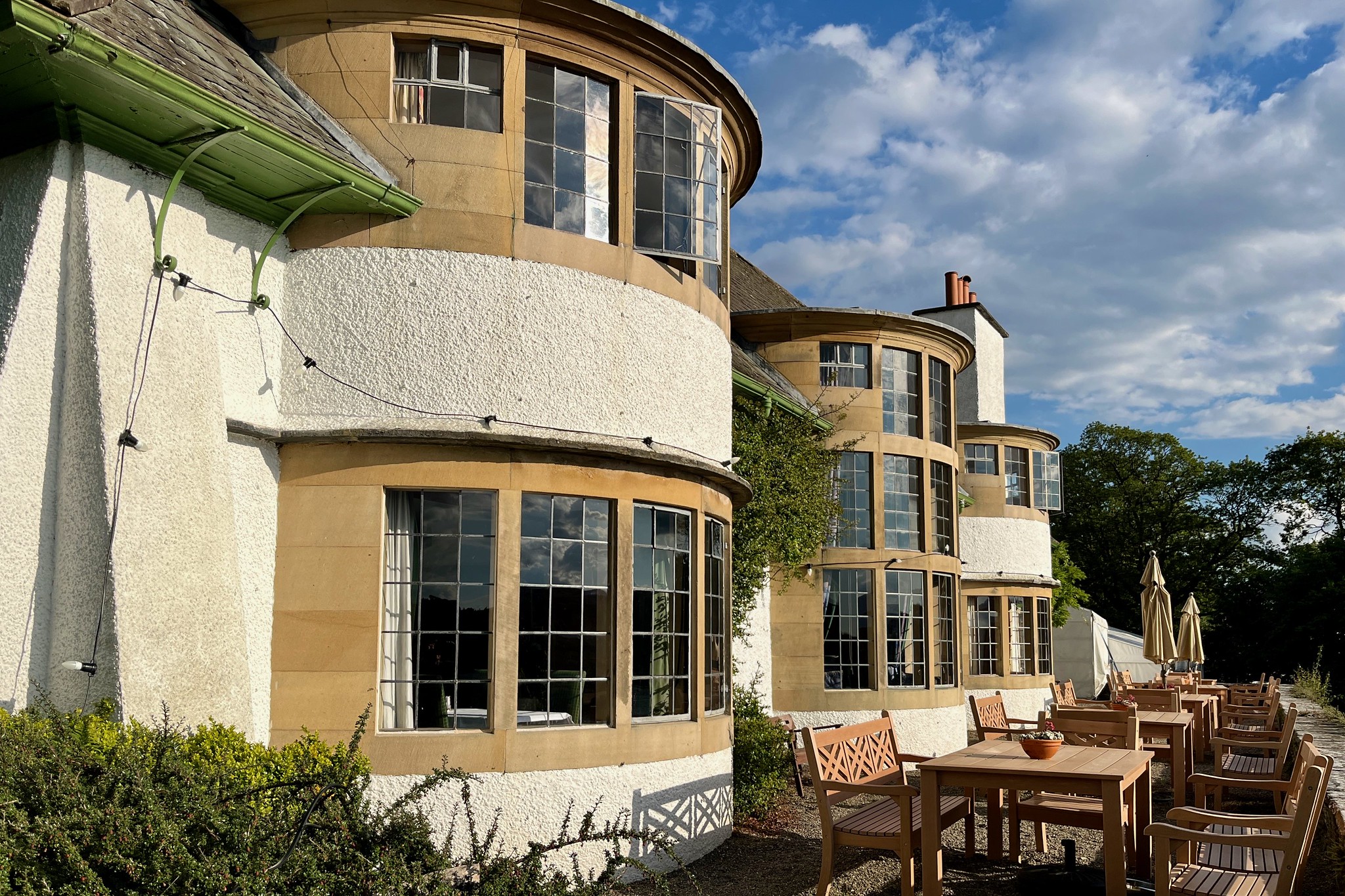

View from the west, photo by Christopher Vickers, on visitcumbria.com





View from the west, photo by Andrew Bowden on flickr





View from the west, photo Jonathan Palombo on Wikipedia



View from the north-west, photo by Jacques Lasserre on Panoramio





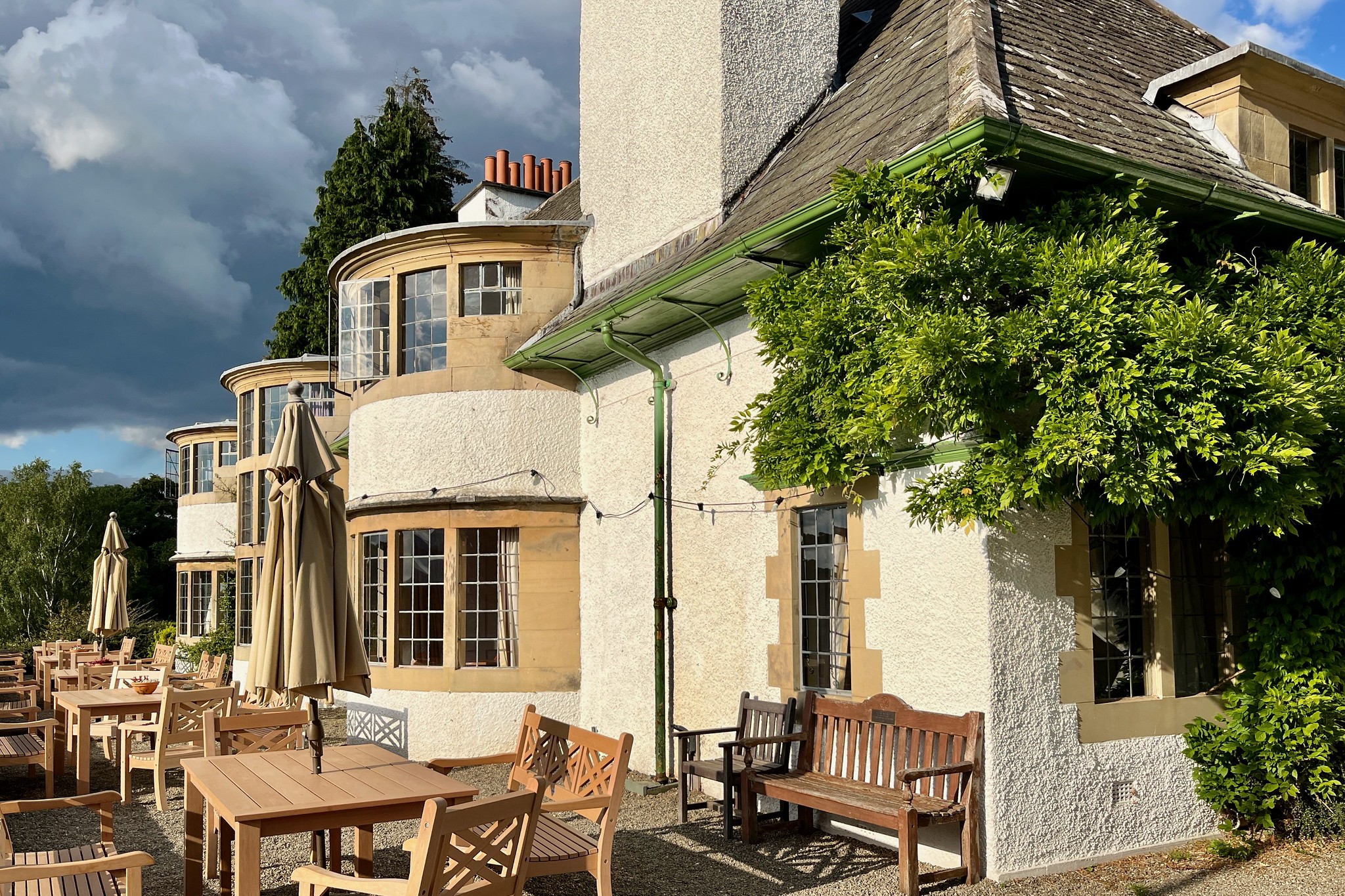

View from the south-west, photo flipflopnick on Panoramio (Wikipedia)





View from the south, photo by Anna Armstrong on flickr





View from the south-west, photo by FFNick on Wikipedia





View from the south (originally with a veranda),
photo by Jacques Lasserre on Panoramio,
Link > RIBA Collections





Service wing, view from the north-west, photo courtesy of John Trotter





  Service wing, view from the north-east, photo courtesy of John Trotter





 Service wing, view from the north-east, photo courtesy of John Trotter

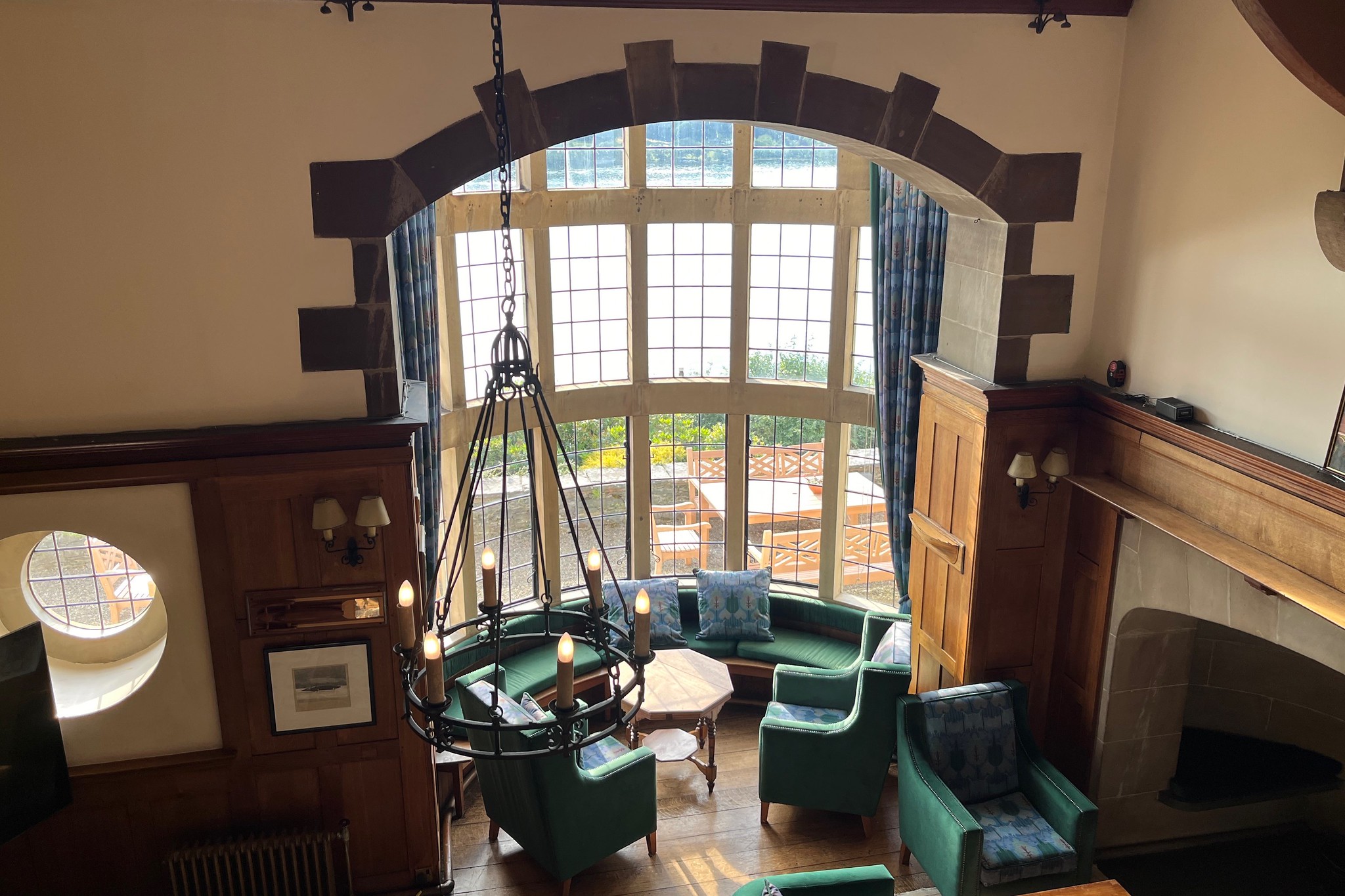

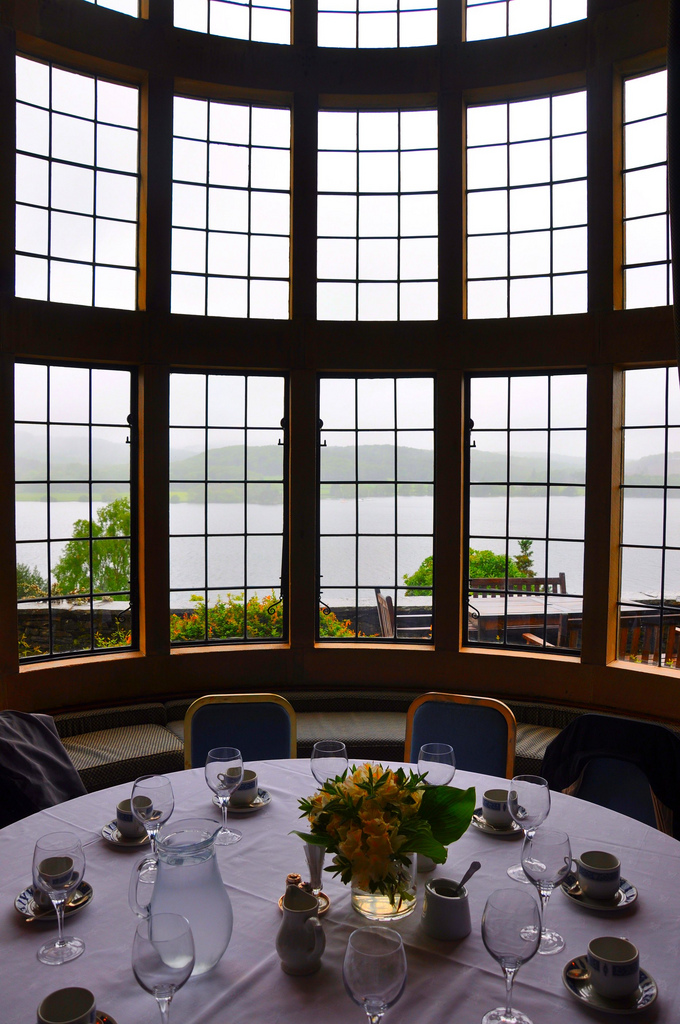

The Hall, photo on wmbrc.com



 The Hall, photo courtesy of John Trotter



The Hall,
photo in Kunst und Kunsthandwerk, VII, 1904, Heft 5, p.241





The Hall, photo by Charles Holland on fantasticjournal.blogspot.com



The Hall, carved ends of two beams,
generally thought to be a caricature of the client A. C. Briggs,
photo by robyneerica on flickr,
Link > RIBA Drawings Collection





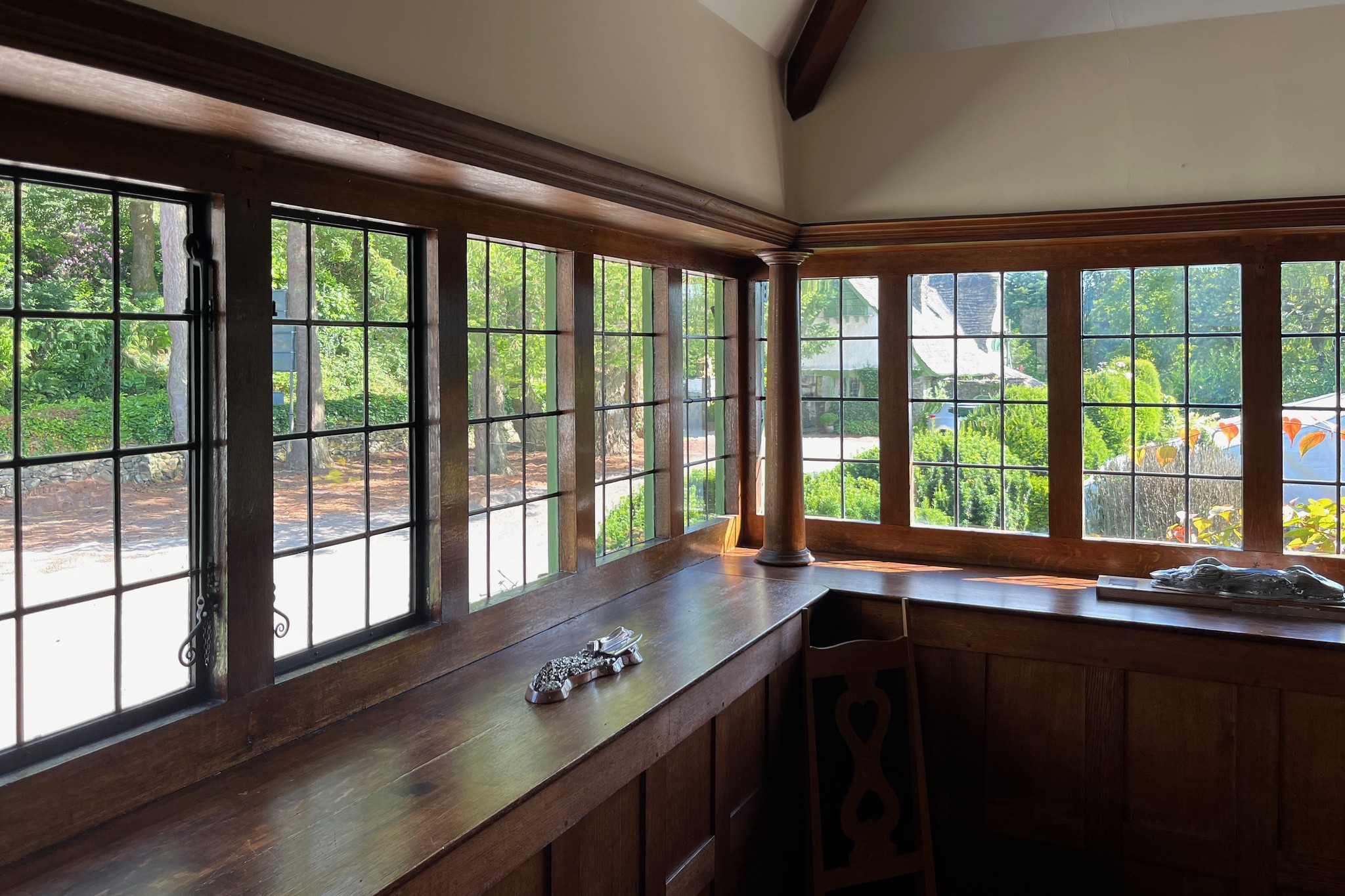

Stairs, photo on wmbrc.com





Stairs, photo Voysey Society, on twitter



Stairs, photo by robyneerica on flickr






Stairs, photo by von sfPhotocraft on flickr

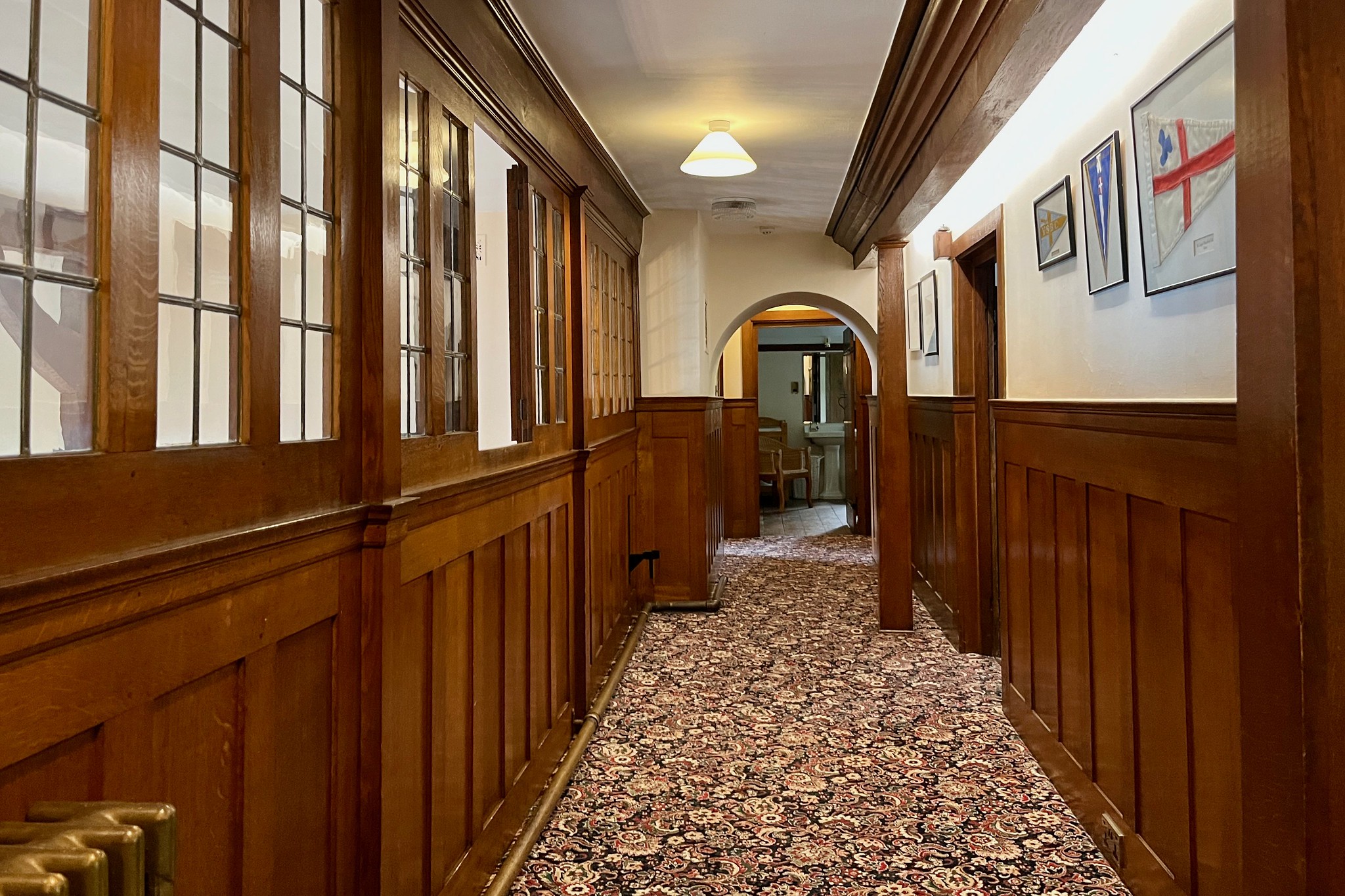

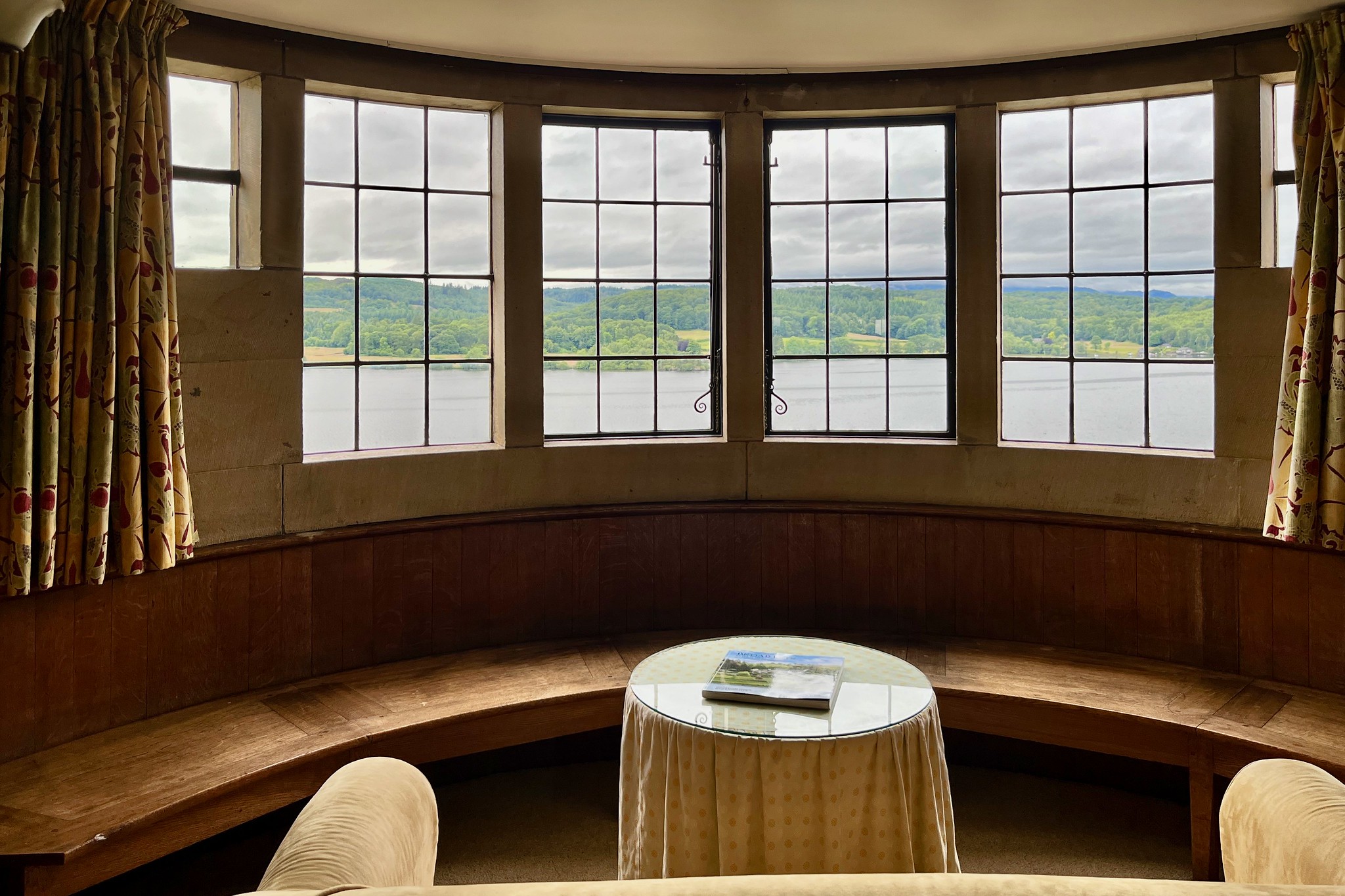

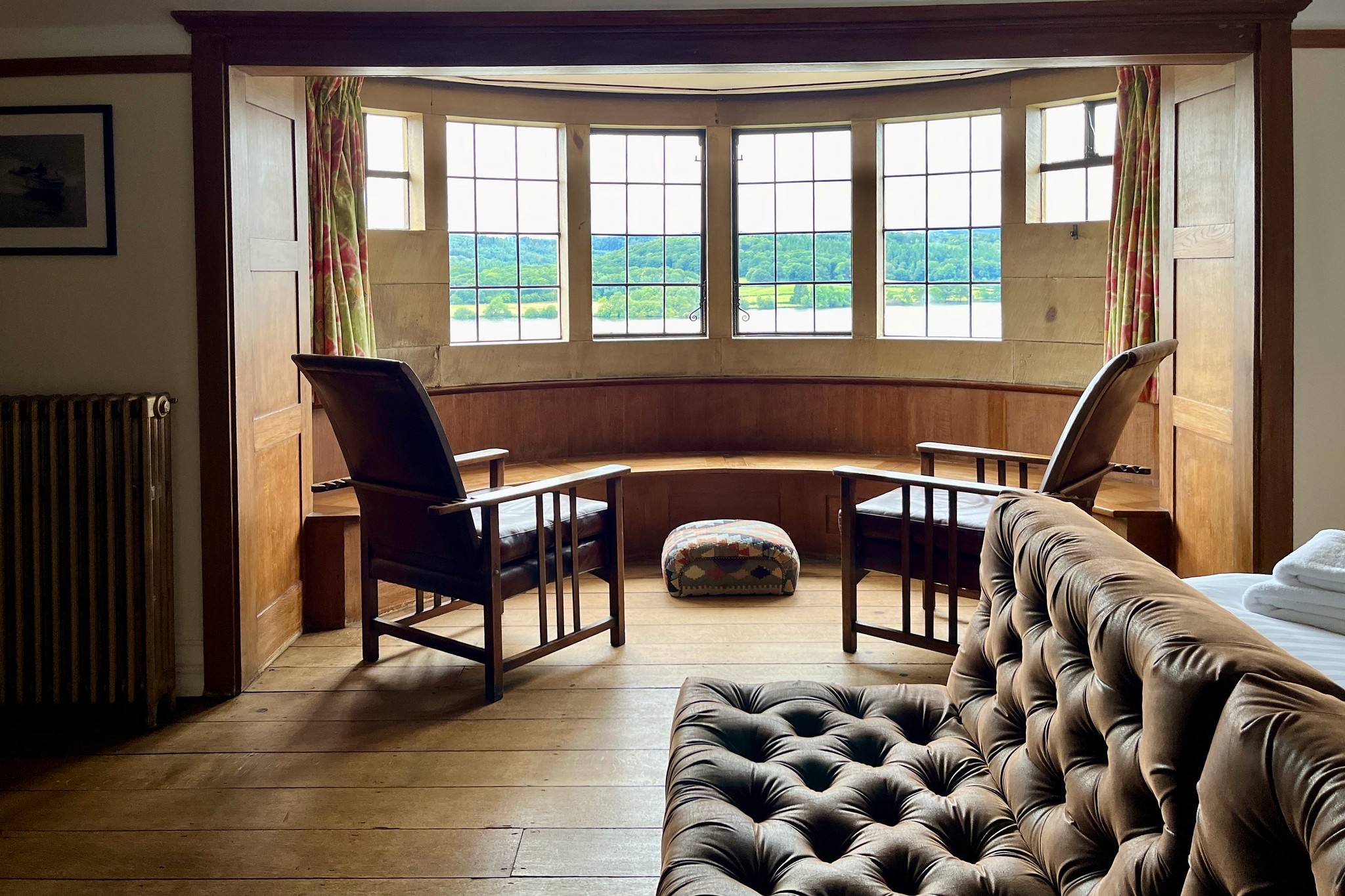

Upstairs hall,
photo on www.upstagedbydesign.com


Entrance door, photo by sfPhotocraft on flickr





Entrance door, photo by James on flickr



Dining room, photo published in Muthesius, Das englische Haus, p.162





Dining room,
published in Hermann Muthesius, Das englische Haus.









Dining room (RIBA)


Drawing room,
published in Hermann Muthesius, Das englische Haus.





Photo on wmbrc.com




Broad Leys, first scheme (1898) not executed, south elevation and ground plan





Broad Leys, Site plan as executed,
published in Hermann Muthesius, Das englische Haus.







Ground plan and section as executed,
RIBA Drawings Collection





Ground plan as executed
Link > RIBA Drawings Collection



First floor plan as executed

Link > RIBA Drawings Collection







Ground plan as executed by H. R. Hitchcock,
on architectdesign.blogspot.de



Ground plan,
 published in Herman Muthesius, Das englische Haus.



First floor plan,
published in Hermann Muthesius,
Das englische Haus.





Ground plan by Patkos Mate





First floor plan by Patkos Mate


West and south elevations,
Link > RIBA Drawings Collection





South and north elevations,
Link > RIBA Drawings Collection





1898, Broad Leys, unexecuted design for combined stables and lodge
Link > RIBA Drawings Collection

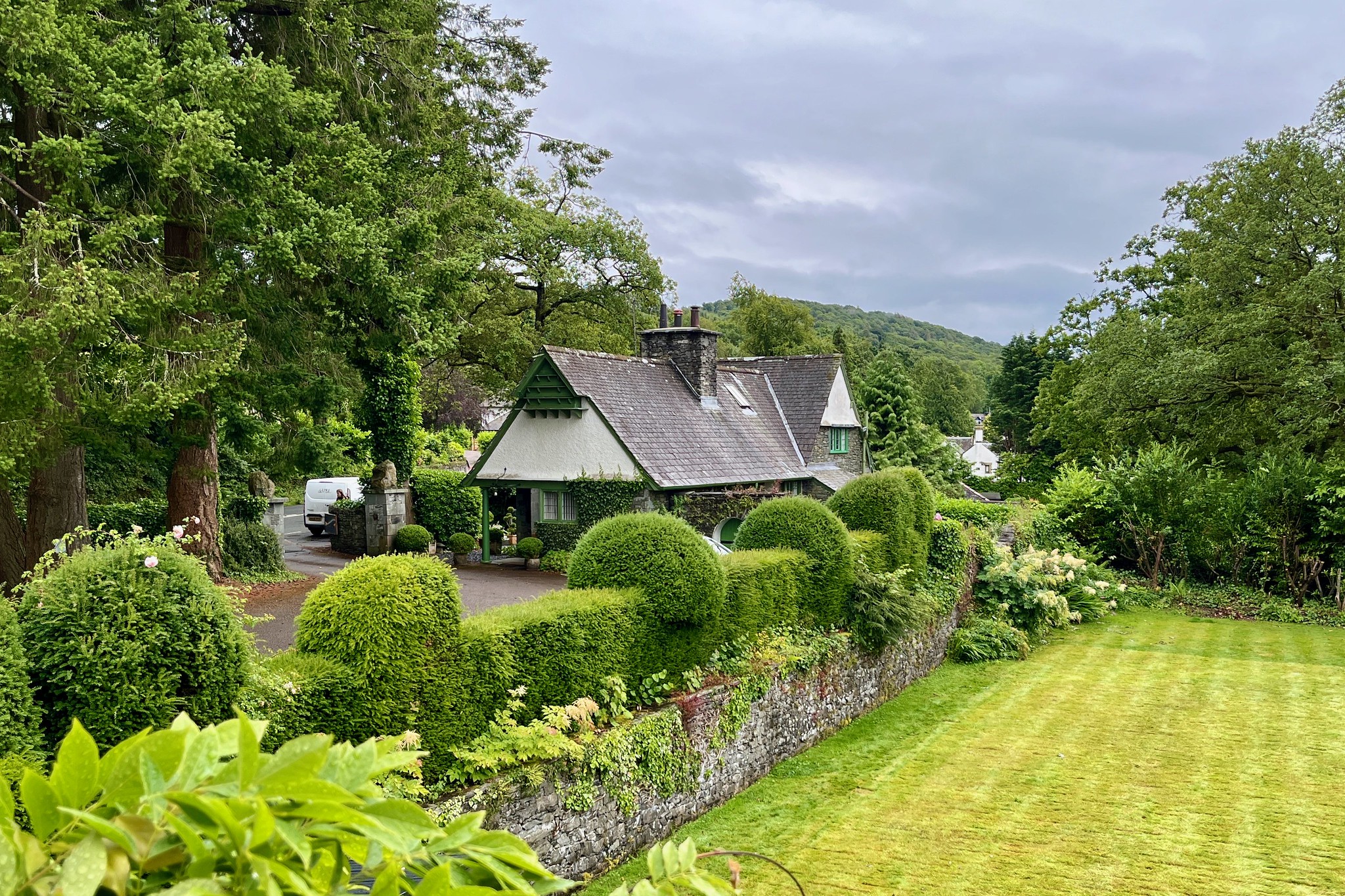

Gate lodge
Link >
RIBA Drawings Collection





Gate lodge
Link >
RIBA Drawings Collection





Gate lodge with dovecots at the gable
Link >
RIBA Drawings Collection





Gate lodge, photo by James on flickr



 Gate lodge, photo courtesy of John Trotter





 Gate lodge, photo courtesy of John Trotter





The entry in Pevsner's Cumbria (with Matthew Hyde, 2010) reads:

BROADLEYS, 2 m. s, just past the former Lancastrian border. By CFA Voysey, 1898-1899, in the years of his greatest success and fertility (cf Moor Crag, nearby), for Henry Currer-Briggs of Yorkshire, colliery owner. Later owned by the Milnes of Manchester, and since 1950 by the Windermere Motor Boat Racing Club [WMBRC]. Built by Pattinsons (with electric lighting), and fitted out by Simpson.

Towards the lake Broadleys is, for Voysey, unusually formal in composition, and yet not in any set symmetry. The front has three full height curved bows, the middle one with two transoms, the l and r ones representing two storeys and expressing them. Some bare wall to the r, not matched by the l. On the landward side E, it is an L with a long low service wing under a big roof. The main block has a porch and to its l, a square projection with continuous windows to the staircase. On the seldom-seen N elevation, five tiers of windows are artfully disposed to suit the interior requirements. White roughcast, green paint, unmoulded sandstone mullions and transoms, set flush with the wall, battered buttresses, iron brackets under the eaves, graded blue-green slates and big plain chimneys. A continuous dripmould of rough slate links all the windows. What is so surprising about the interior is its cosy scale. We enter into a low space which opens into the double-height hall, lit by the full height of the centre bay, and warmed by a huge walk-in fireplace – but these words imply a grandeur which is conspicuously missing; the scale is always human, even slightly dwarfish. The upstairs corridor bridges and looks down into it. Oak panelling without mouldings. At the N end is the DRAWING ROOM, now the bar, with the shallowest tiled bow for the fireplace. At the other end the DINING ROOM, with a green-tiled fireplace, and more simplified panelling. That is all; it was, after all, only a holiday home. The STAIR winds round four posts, and a decorative slatted cage of balusters with inset hearts: Voysey's signature. The upstairs rooms and corridor are very low for the date, but the roof slopes intrude nonetheless. Only four bedrooms. Three have fireplaces of narrow yellow-glazed bricks. The views from the curved bows are sensational.

LODGE. Also by Voysey. The stone is exposed, except in the gables. Dovecote in the N gable.

Source: Pevsner Architectural Guides at Yale University Press.

Link > www.voyseysociety.org





Description on Historic England
CARTMEL FELL NEWBY BRIDGE ROAD SD 39 SE (East side) 3/25 Broadleys Cottage 15.5.72
II
House. 1898-1900. By C.F.A. Voysey. Roughcast with hipped slate roof, one stack is coursed slate. One storey with attic, 3 bays. Wide eaves and raking buttresses. Windows have casements, leaded glazing with rectangular quarries; ground floor has 2:4:3-light windows. Large gabled dormer to centre bay has 4-light window. Entrance to 2nd bay has plain door with original handle with heart motifs; similar door to right return. 2 cross-axial stacks, that to right is slate. Rear has gabled central bay. 3-light window to 1st bay; 2nd bay has 2-light windows to ground floors, single light to right, possibly stair window; inserted small light to left of 1st floor window. Left return has 4-light window. Interior not inspected.



Photographs and Drawings Courtesy of The Royal Institute of British Architects.
Photographs, drawings, perspectives and other design patterns
at the Royal Institut of British Architects Drawings and Photographs Collection.
Images can be purchased.
The RIBA can supply you with conventional photographic or digital copies
of any of the images featured in RIBApix.

Link > RIBA Drawings Collection: Broad Leys Images

Link > RIBA Drawings Collection: all Voysey Images


Link > Black & White Photos on flickr taken in 1976

Link > www.artsandcraftsdesign.com (Photos)

Link > http://fantasticjournal.blogspot.com by Charles Holland
           Baillie-Scott's Blackwell House and CFA Voysey's Broad Leys.

Link > Photos by sfPhotocraft on flickr

Link > www.wmbrc.co.uk



References:

Wendy Hitchmough, CFA  VOYSEY, London 1995, pp. 94-99, 110-13.

David Cole, The Art and architecture of CFA Voysey : English pioneer modernist architect & designer, 2015.

Duncan Simpson, C.F.A.  VOYSEY an architect of individuality, London 1979.

The British Architect, LI, 1899, p. 256.

 The Studio, XVI, 1899, p. 158; XXXI, 1904, p. 127.

 Builder's Journal & Architectural Record, XVI, 1902-03, p. 389; XVII, 1903, p. 29.

 Hermann Muthesius, Das englische Haus, I, 1904-05, pp. 159-164.

 The Architect, LXXIX, 1908, p. 208.

 David Gebhard, Charles F. A. Voysey, 1975, figs. 72-75.

 Wendy Hitchmough, CFA  VOYSEY, Phaidon Press, London 1995, pp. 94-99, 110-113.

  David Cole, 'Broad Leys, Windermere - George H Pattinson archive Collection', The Orchard (no.9, 2020), pp.22-62.
